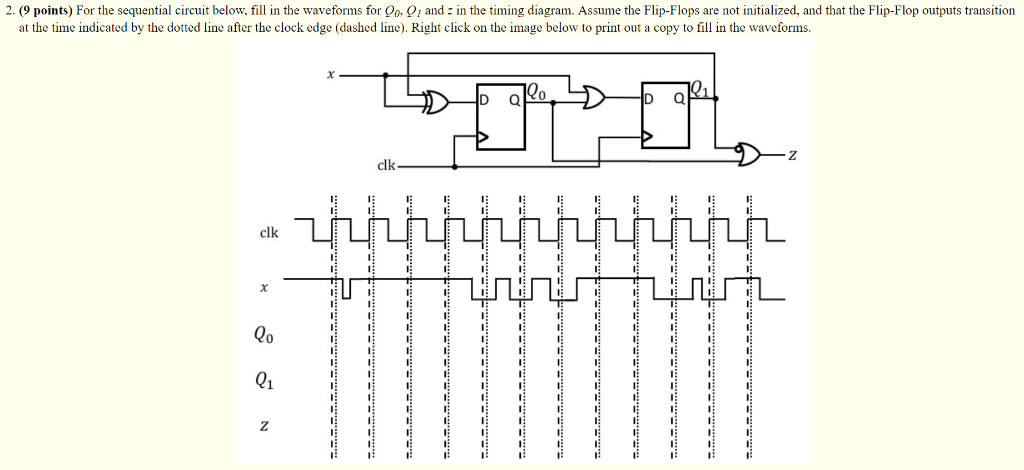

(9 points) For the sequential circuit below,fill in the waveforms for Q0,Q1 and z in the timing diagram. Assumethe Flip-Flops are not initialized, and that the Flip-Flop outputstransition at the time indicated by the dotted line after the clockedge (dashed line). Right click on the image below to print out acopy to fill in the waveforms.
2. 9 points For the sequential circuit below ill in the waveforms or 0 1 and ะ
