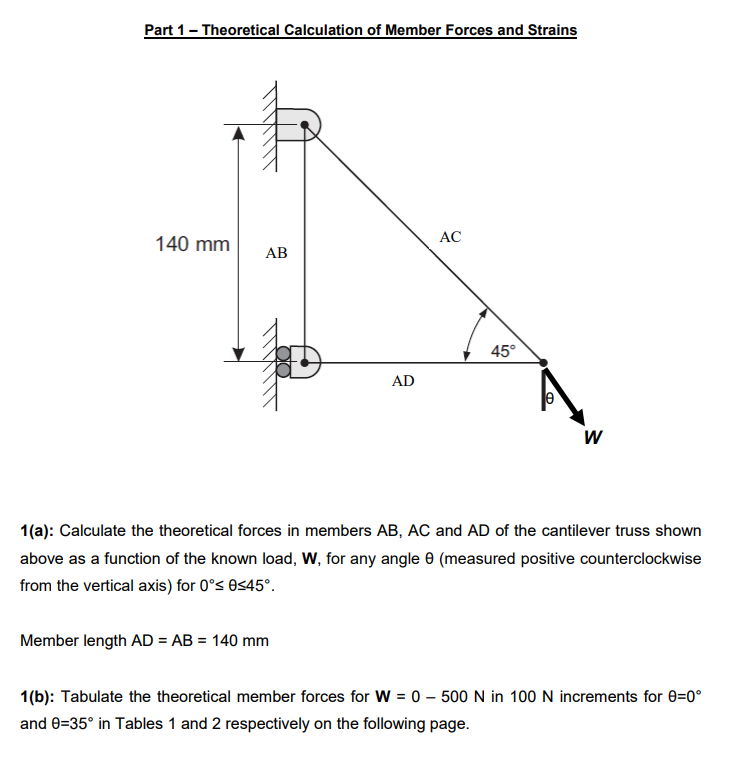

r Fo AC 140 mmAB 450 AD 1(a): Calculate the theoretical forces in members AB, AC and AD of the cantilever truss shown above as a function of the known load, W, for any angle e (measured positive counterclockwise from the vertical axis) for 0°s 0s45. Member length AD AB 140 mm 1(b): Tabulate the theoretical member forces for W- 0-500 N in 100 N increments for 0-0 and 0-35 in Tables 1 and 2 respectively on the following page

Would you please solve this and show the answers step by stepthank you

r Fo AC 140 mmAB 450
