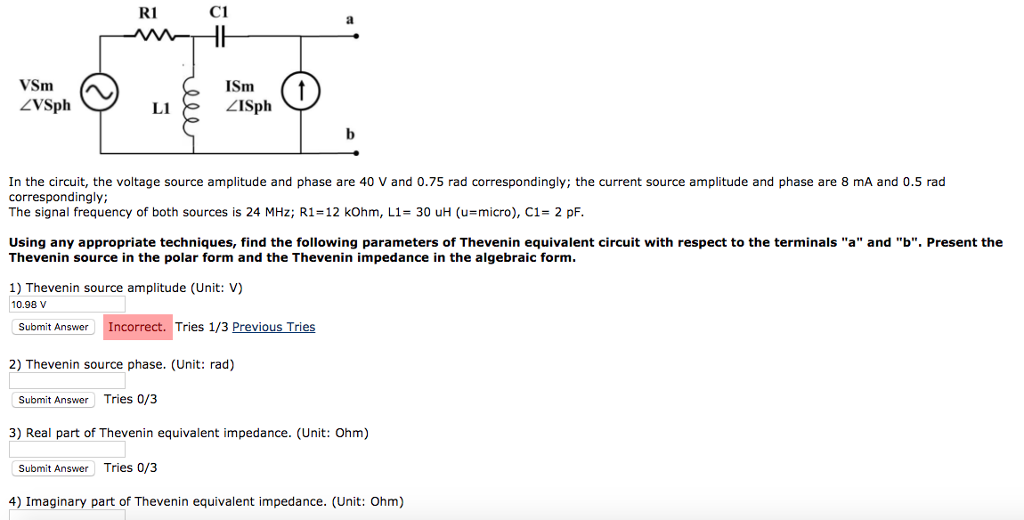

R C ?Sm ZISph ZVSph LI In the circuit, the voltage source amplitude and phase are 40 V and 0.75 rad correspondingly; the current source amplitude and phase are 8 mA and 0.5 rad correspondingly; The signal frequency of both sources is 24 MHz; R1-12 kOhm, L1-30 uH (u-micro), C1- 2 pF. Using any appropriate techniques, find the following parameters of Thevenin equivalent circuit with respect to the terminals a and b. Present the Thevenin source in the polar form and the Thevenin impedance in the algebraic form. 1) Thevenin source amplitude (Unit: V) 10.98 v Submit Answer Incorrect. Tries 1/3 Previous Tries 2) Thevenin source phase. (Unit: rad) Submit Answer Tries 0/3 3) Real part of Thevenin equivalent impedance. (Unit: Ohm) Submit Answer Tries 0/3 4) Imaginary part of Thevenin equivalent impedance. (Unit: Ohm)
