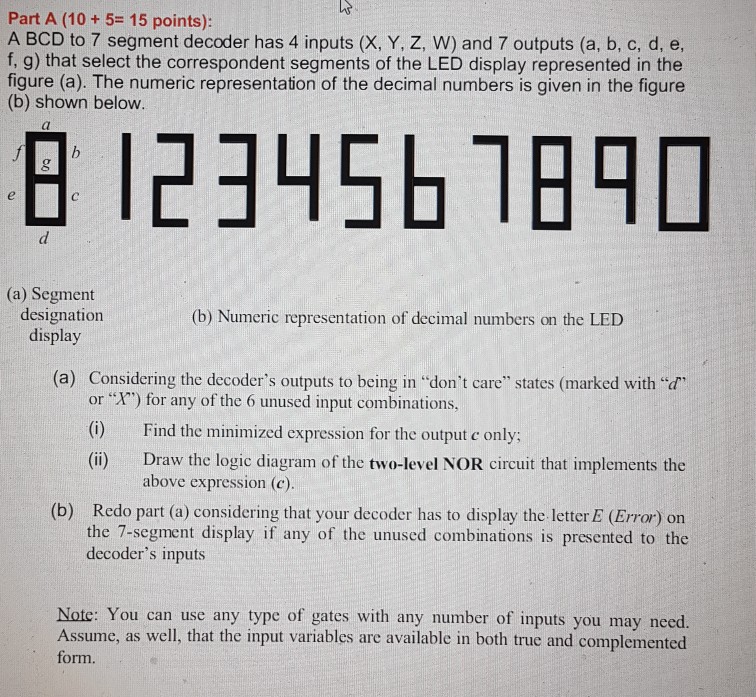

Part A (10 + 5= 15 points). A BCD to 7 segment decoder has 4 inputs (X, Y, Z, W) and 7 outputs (a, b, c, d, e f, g) that select the correspondent segments of the LED display represented in the figure (a). The numeric representation of the decimal numbers is given in the figure (b) shown below. 12345b1090 (a) Segment designation display (b) Numeric representation of decimal numbers on the LED (a) Considering the decoders outputs to being in dont care states (marked withd or X) for any of the 6 unused input combinations (i)
