(Solved) : Matlab Coding Four Bar Linkage System Shown First Link Input Link Crank Length 1 Second L Q37505664 . . . .

June 27, 2024June 27, 2024| adminadmin| 0 Comment| 8:01 pm
Categories:

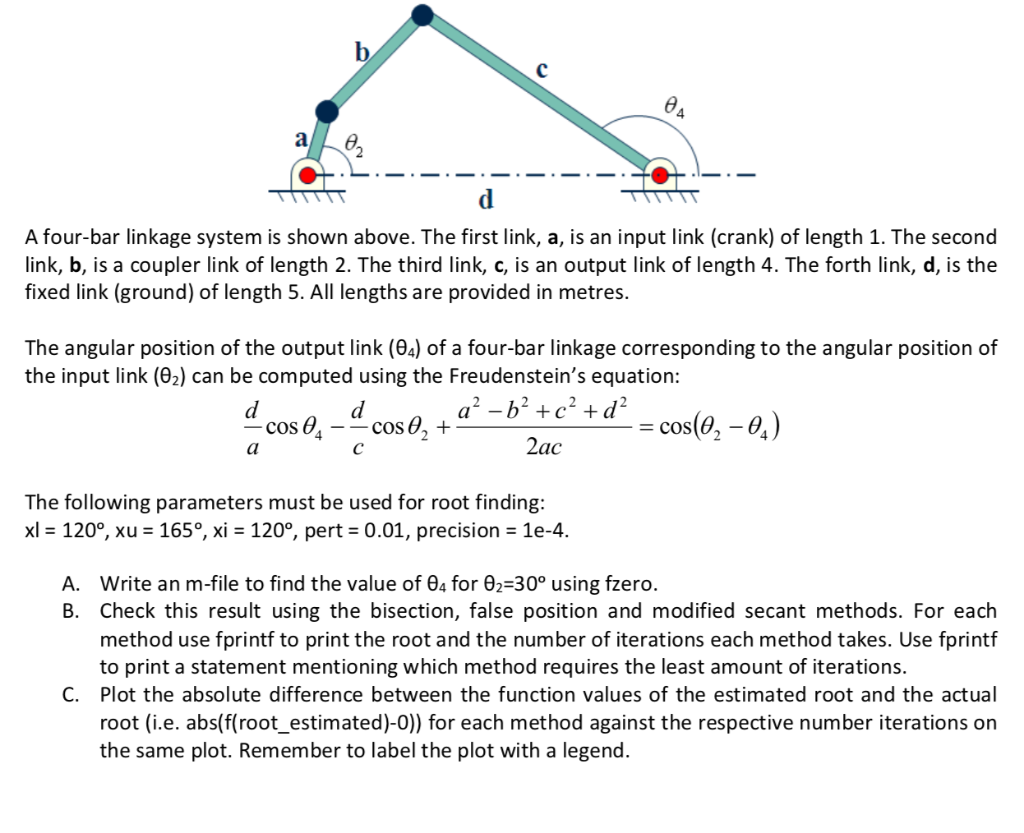

4 A four-bar linkage system is shown above. The first link, a, is an input link (crank) of length 1. The second link, b, is a

[MATLAB Coding] A four-bar linkage system is shown above. Thefirst link, a, is an input link (crank) of length 1. The secondlink, b, is a coupler link of length 2. The third link, c, is anoutput link of length 4. The forth link, d, is the fixed link(ground) of length 5. All lengths are provided in metres. Pleaseanswer the whole question in MATLAB coding.

4 A four-bar linkage system is shown above.
