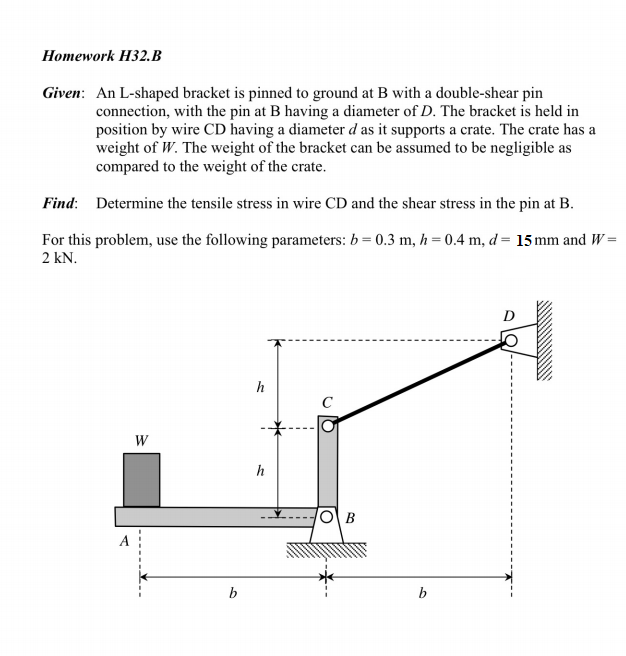

Homework H32.B Given: An L-shaped bracket is pinned to ground at B with a double-shear pin connection, with the pin at B having a diameter of D. The bracket is held in position by wire CD having a diameter d as it supports a crate. The crate has a weight of W. The weight of the bracket can be assumed to be negligible as compared to the weight of the crate. Find: Determine the tensile stress in wire CD and the shear stress in the pin at B. For this problem, use the following parameters: b = 0.3 m, h 2 kN 0.4 m, d= 15 mm and W-
