(Solved) : Hi Need Part 2 Option 1 Done Please Provide Truth Table Boolean Expression Unsimplified Si Q27079164 . . . .

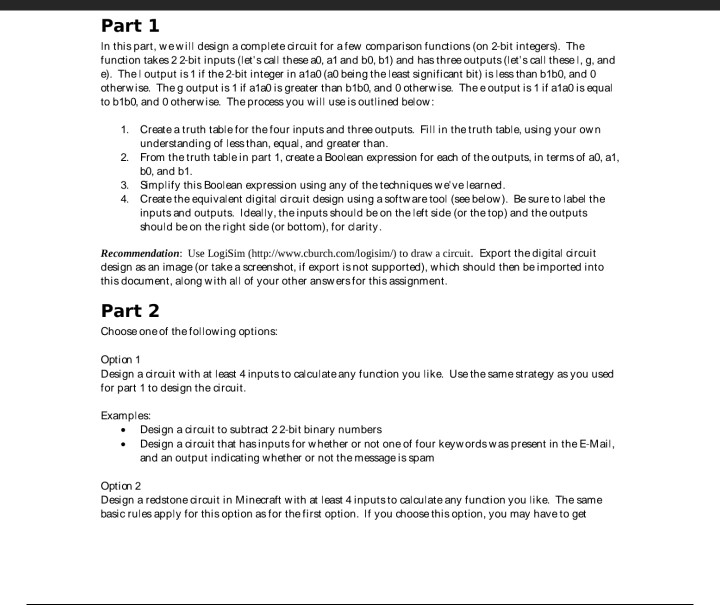

Part 1 In this part, wewill design a complete circuit for afew comparison functions (on 2-bit integers). The function takes 2 2-bit inputs (lets call these a0, a1 and b0, b1) and has three outputs (lets call thesel, g, and e). Thel output is 1 if the 2-bit integer in a1a0 (a0 being theleast significant bit) is less than b1b0, and 0 otherwise. Theg output is 1 if a1a0 is greater than b1b0, and 0 otherwise. The e output is 1 if a1a0 is equal to b1b0, and 0 otherwise. The prooess you will use is outlined
