Now we are going to minimize the area consumed by addressdecoders that is sum of

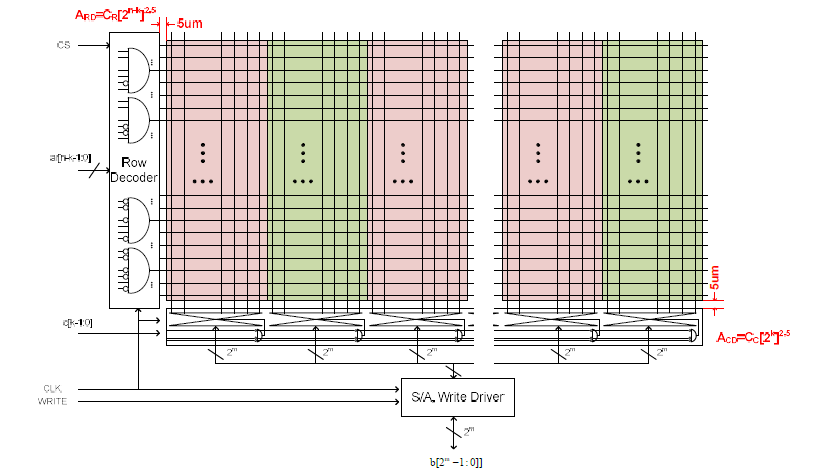

the row decoder and the column decoder. Considering indication inred in the
following diagram, find the optimum k value for minimum decoderarea. Use the
following parameters – n=26, CR=3.5um2, CC=5.4um2, and unit cellsize of a SRAM is
3um/2.2um in width/height, respectively.
5um ecoder C-10 WRITE S/A,Wrte Driver Show transcribed image text
Expert Answer
An answer will be send to you shortly. . . . .
