Giving following state diagrams, build your transaction tableand schematic digrams. Include the K-maps

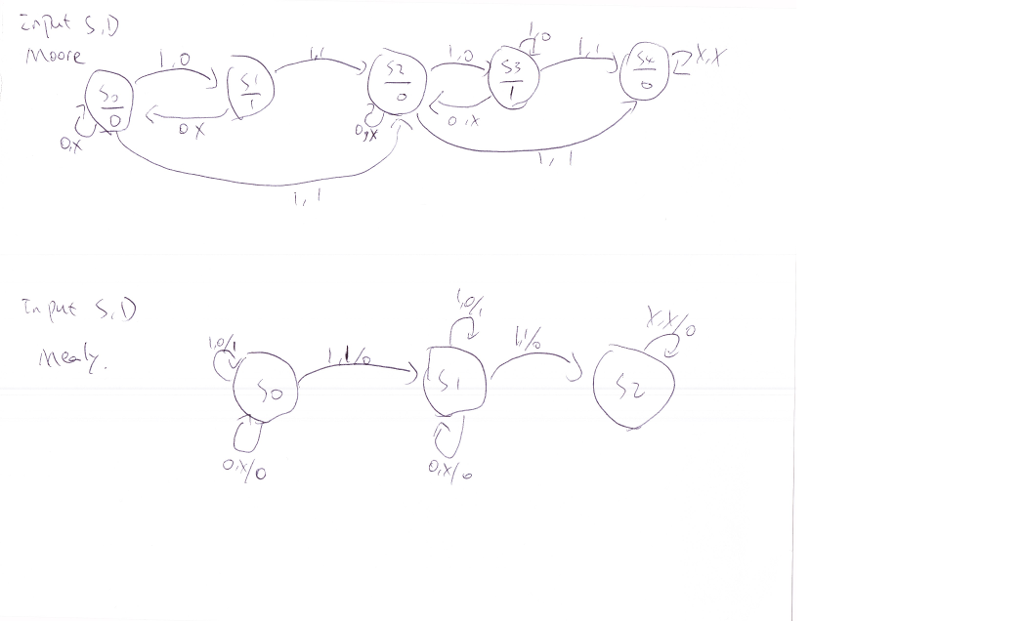

The first one is mealy machine, the second one is moore machine.Both inputs are S and D. And both are using D FF.

Don’t comment on my pictures or do anything to my question IFYOU CANNOT OR LACK OF ABILITY TO ANSWER MY QUESTION!!!!! OR YOUWILL WASTE MY TIME AND QUESTION POSTS!!!!! MY PICTURE IS DEFINITELYCLEAR, IF YOU THINK NOT, GO TO CHECK YOUR EYE BALLS. I HAVE BEENWASTED TOO MANY POST TIMES, AND MY PRECIOUS TIME!

Moore S2 S3 o iX 0? 1% So S I S2. ?
