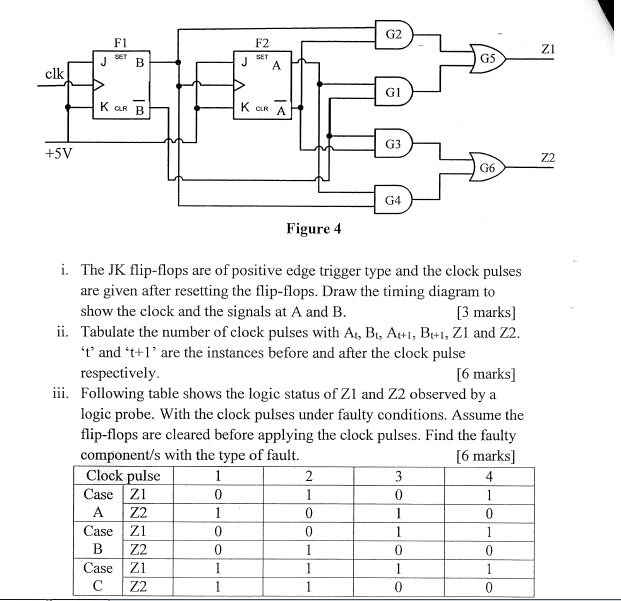

![G2 F1 F2 Z1 G5 Gl G3 +5V Z2 G6 G4 Figure 4 i. The JK flip-flops are of positive edge trigger type and the clock pulses are given after resetting the flip-flops. Draw the timing diagram to show the clock and the signals at A and B [3 marks] ii. Tabulate the number of clock pulses with A, Bt, At1, B+1, Zl and Z2 t and t+ are the instances before and after the clock pulse respectively Following table shows the logic status of Z1 and Z2 observed by a logic probe. With the clock pulses under faulty conditions. Assume the flip-flops are cleared before applying the clock pulses. Find the faulty component/s with the type of fault. Clock pulse Case Z1 [6 marks] iii. [6 marks] A İZZ Case Z1 Case Z1 CİZZ](https://media.cheggcdn.com/media%2F8d1%2F8d1fe238-d4ea-479e-a36a-4ed92f8c2255%2Fphpf11oGH.png)
G2
OR
PayPal Gateway not configured
OR
PayPal Gateway not configured
(Solved) : G2 F1 F2 Z1 G5 Gl G3 5v Z2 G6 G4 Figure 4 Jk Flip Flops Positive Edge Trigger Type Clock Q33161883 . . . .
