(Solved) : Four Bar Linkage System Shown First Link Input Link Crank Length 1 Second Link B Coupler Q37615011 . . . .

June 27, 2024June 27, 2024| adminadmin| 0 Comment| 8:10 pm
Categories:



USEMATLAB

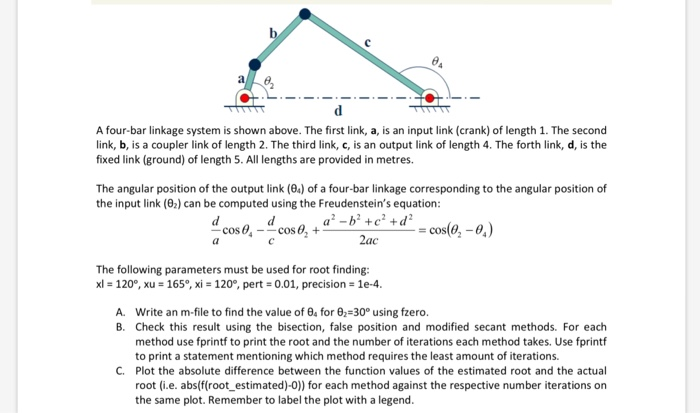

A four-bar linkage system is shown above. The first link, a, is an input link (crank) of length 1. The second link, b, is a cA four-bar linkage system is shown above. The first link, a, is an input link (crank) of length 1. The second link, b, is a coupler link of length 2. The third link, c, is an output link of length 4. The forth link, d, is the fixed link (ground) of length 5. All lengths are provided in metres. The angular position of the output link (04) of a four-bar linkage corresponding
