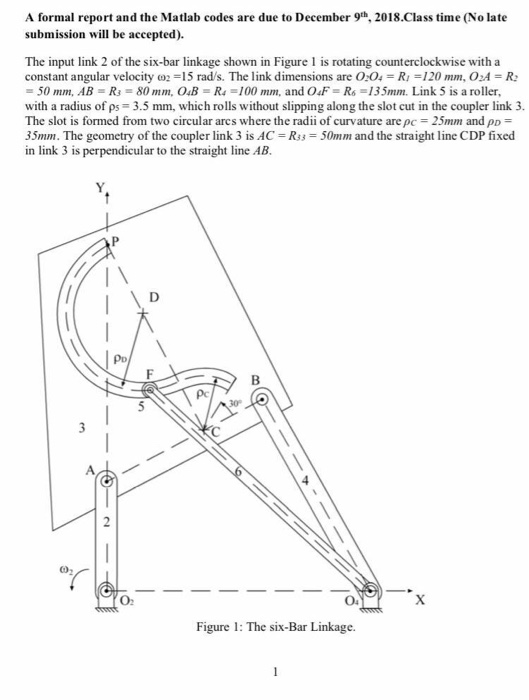

A formal report and the Matlab codes are due to December9th, 2018.Class time (No late submission will be accepted) The input link 2 of the six-bar linkage shown in Figure 1 is rotating counterclockwise with a constant angular velocity co.-15 rads. The link dimensions are 004 R, =120 mm, O24-R: 50 mm, AB = R3 = 80 mm, O4B = R4-100 mm, and 04F = R6ยท13 5nun. Link 5 is a roller, with a radius of ps 3.5 mm, which rolls without slipping along the slot cut in the coupler link 3. The slot is formed from two circular arcs where the radii of curvature are pc 25mm and pp 35mm. The geometry of the coupler link 3 is AC Rss 50mm and the straight line CDP fixed in link 3 is perpendicular to the straight line AB. Figure 1: The six-Bar Linkage.media%2Feaf%2Feafdc45f-1426-4b14-8e37-a9A
