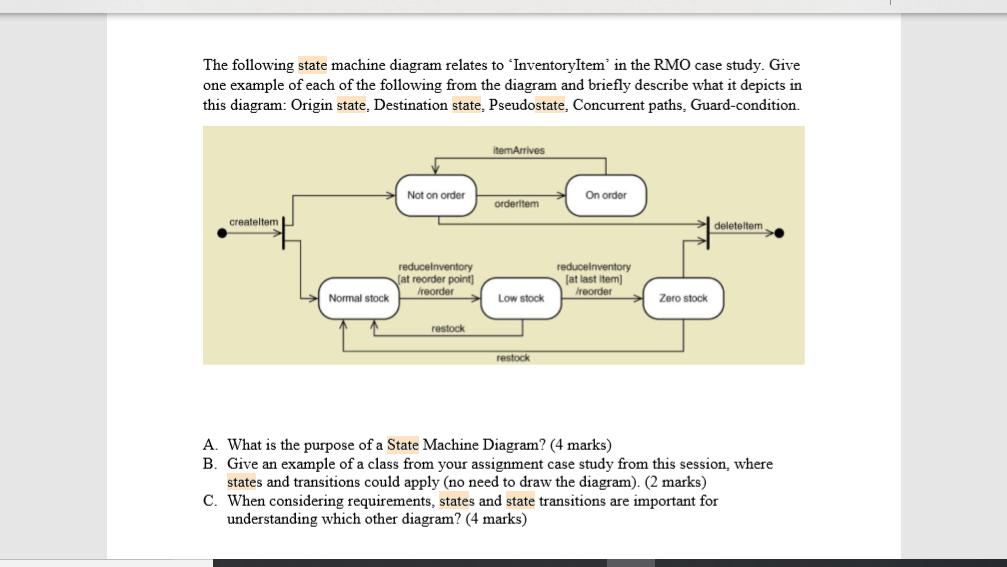

The following state machine diagram relates to ‘Inventor Item, in the RMO case study. Give one example of each of the following from the diagram and briefly describe what it depicts in this diagram: Origin state, Destination state, Pseudostate, Concurrent paths, Guard-condition. Not on orderOn order createltem deleteltem at last item) at reorder point Normal stockLow stock eorderZero stock restock restock A. What is the purpose of a State Machine Diagram? (4 marks) B. Give an example of a class from your assignment case study from this session, where states and transitions could apply (no need to draw the diagram). (2 marks) C. When considering requirements, states and state transitions are important for understanding which other diagram? (4 marks)
