For the following question, refer to the Scatterplot Figure atthe end of the exam

a. How many total bits are represented by the four receivedsignals in the diagram?

b. How many levels are represented by the QAM system in thefigure?

c. How many bits/Hz are represented by the system in thefigure?

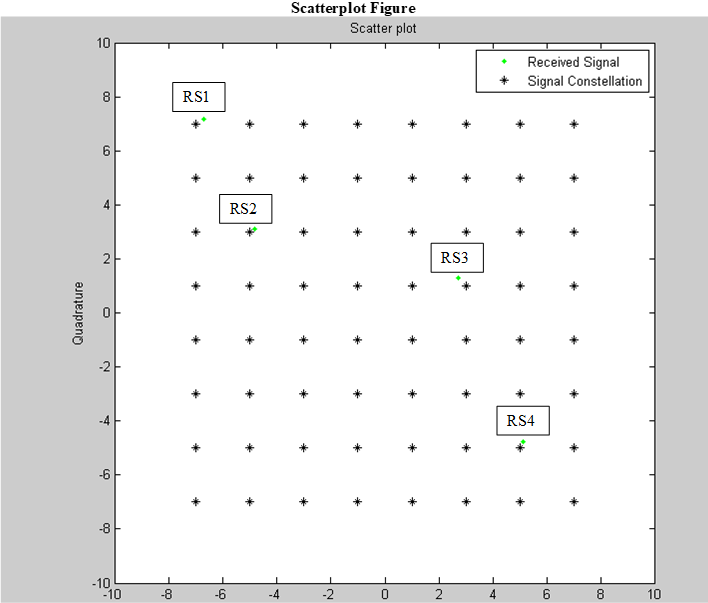

Scatterplot Figure Scatter plot 10 Received Signal Signal Constellation RSI RS2 RS3 RS4 -6 -8 10 -10 -8 -6 8 10

Scatterplot Figure Scatter plot 10 Received Signal Signal Constellation RSI RS2 RS3 RS4 -6 -8 10 -10 -8 -6 8 10 Show transcribed image text
