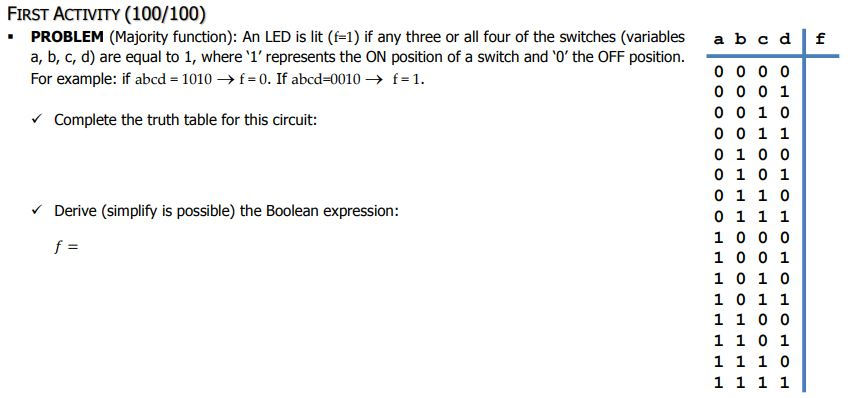

FIRST ACTIVITY (100/100) PROBLEM (Majority function): An LED is lit (f-1) if any three or all four of the switches (variablesa b c d f a, b, c, d) are equal to 1, where 1represents the ON position of a switch and 0 the OFF position. For example: if abcd 1010-f 0. If abcd-0010f 1 0 0 0 1 0 0 1 0 0 0 1 1 0 1 0 0 0 1 0 1 0 l 10 0 l 11 1 0 0 0 1 0 0 1 1 0 1 0 1 0 1 1 1 1 0 0 1 1 0 1 Complete the truth table for this circuit: Derive (simplify is possible) the Boolean expression
