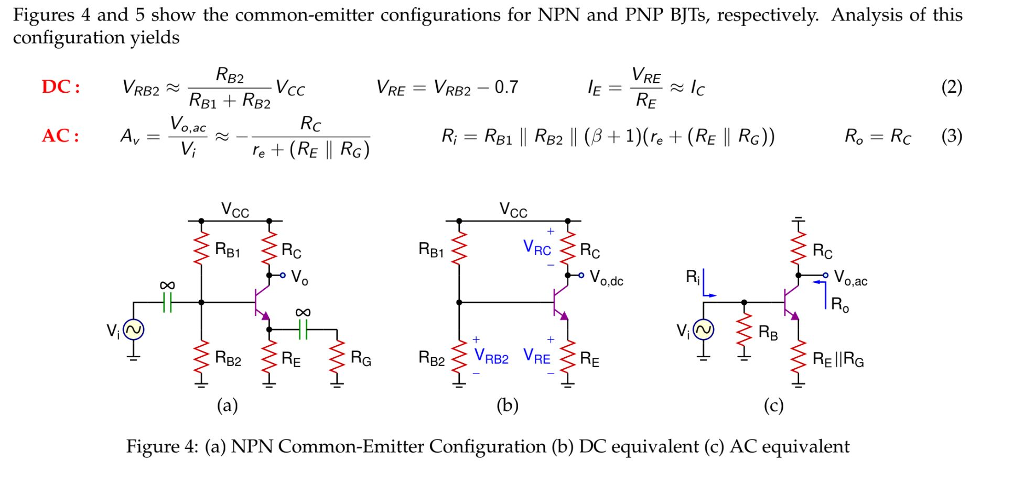

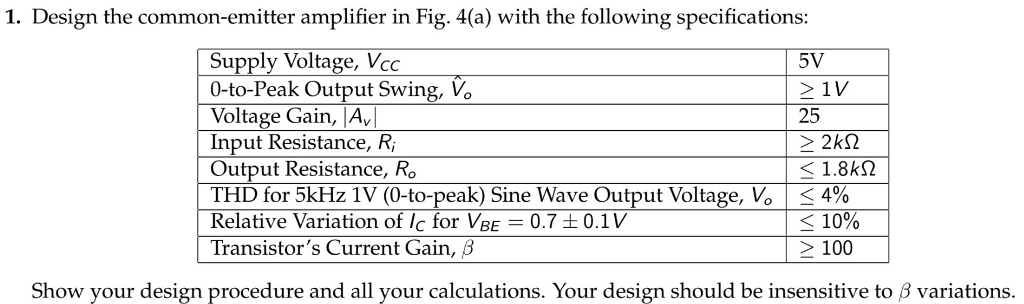

Figures 4 and 5 show the common-emitter configurations for NPN and PNP BJTs, respectively. Analysis of this configuration yields RE B2Vco VRE VRB2 0.7 RB2RB1 RB2 o,ac Vcc Vcc B1 о,ас o,dc RERG Figure 4: (a) NPN Common-Emitter Configuration (b) DC equivalent (c) AC equivalent

Figures 4 and 5 show the common-emitter configurations for NPN and PNP BJTs, respectively. Analysis of this configuration yields RE B2Vco VRE VRB2 0.7 RB2RB1 RB2 o,ac Vcc Vcc B1 о,ас o,dc RERG Figure 4: (a) NPN Common-Emitter Configuration (b) DC equivalent (c) AC equivalent Show transcribed image text
