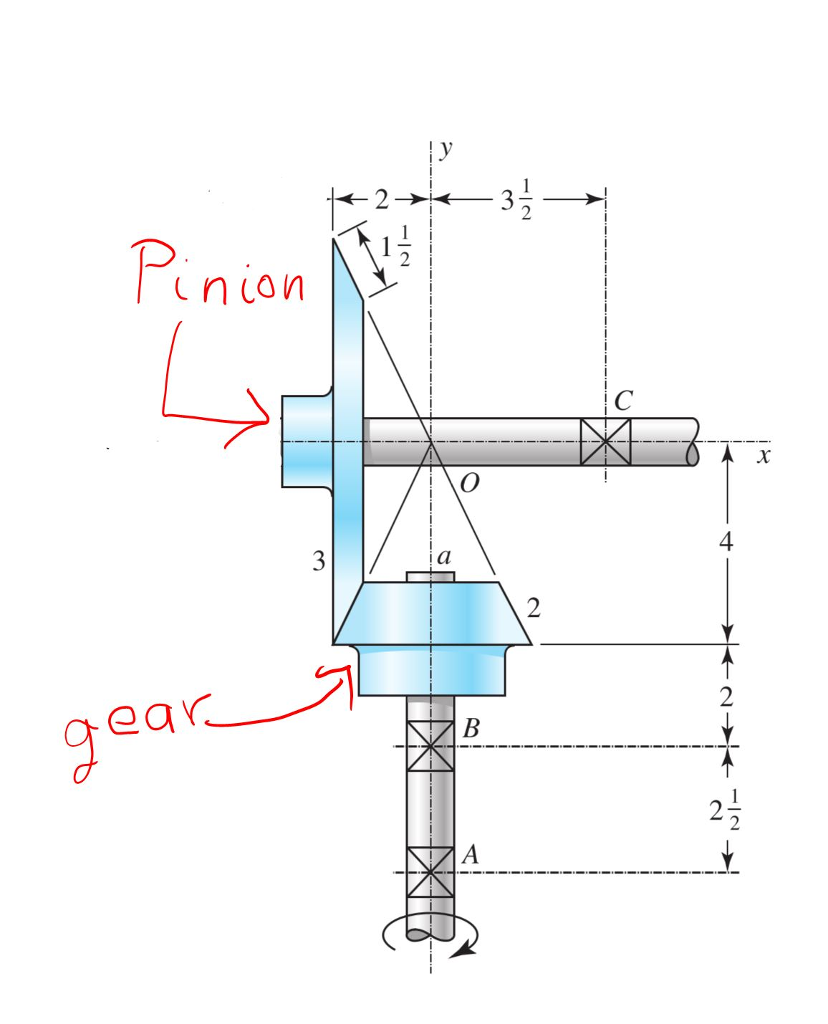

The figure shows a 16-tooth, 32 pitch straight bevel piniondriving a 24-tooth, 32 pitch gear. Both (pinion and gear) have apitch diameter of 0.75 inch and a radius of 0.40 inch. The pinionshaft has a rotational speed of 1,621 RPM.

The 303 stainless steel gear shaft has a diameter of 0.25 inch,and a length of 3 inch. Find the output velocity (in RPM) andangular velocity (rad/sec) of the gear shaft.
