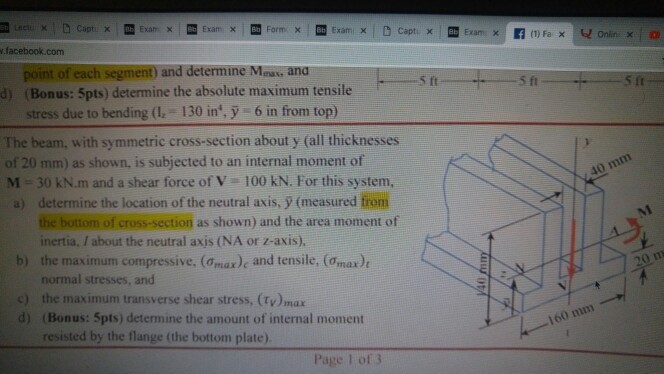

.facebook.com point of each segment) and determine Maax, ana d) (Bonus: 5pts) determine the absolute maximum tensile 5 ft 5 ft 5 ft stress due to bending (1.- 130 in, y 6 in from top) The beam, with symmetric cross-section about y (all thicknesses of 20 mm) as shown, is subjected to an internal moment of N-30 kN.m and a shear force of 100 kN. For this system, a) determine the location of the neutral axis, y (measured fiom 40 mm as shown) and the area moment of inertia, / about the neutral axis (NA or z-axis). the maximum compressive, (Omax)e and tensile, (Omax)t normal stresses, and the maximum transverse shear stress, (y)mar (Bonus: 5pts) determine the amount of internal moment resisted by the flange (the bottom plate) b) c) d) 160 mm Page 1 of3
