(Solved) : Explain Similarities Differences Dram Sram Include Transistor Level Diagram Bit Storage Ce Q34215560 . . . .

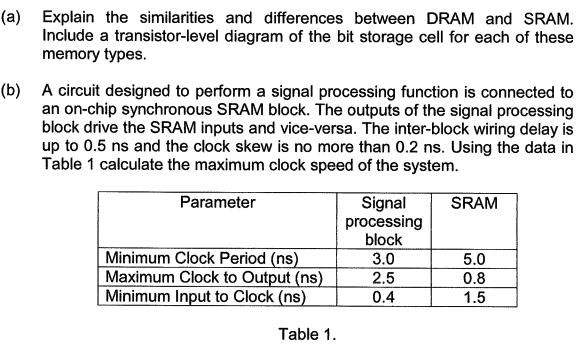

(a) Explain the similarities and differences between DRAM and SRAM Include a transistor-level diagram of the bit storage cell for each of these memory types (b) A circuit designed to perform a signal processing function is connected to an on-chip synchronous SRAM block. The outputs of the signal processing block drive the SRAM inputs and vice-versa. The inter-block wiring delay is up to 0.5 ns and the clock skew is no more than 0.2 ns. Using the data in Table 1 calculate the maximum clock speed of the system Parameter Signal processing block 3.0 2.5 0.4 SRAM Minimum Clock Period (ns Maximum Clock to Output (ns Minimum Input to Clock (ns 5.0 0.8 1.5 Table 1

(a)
