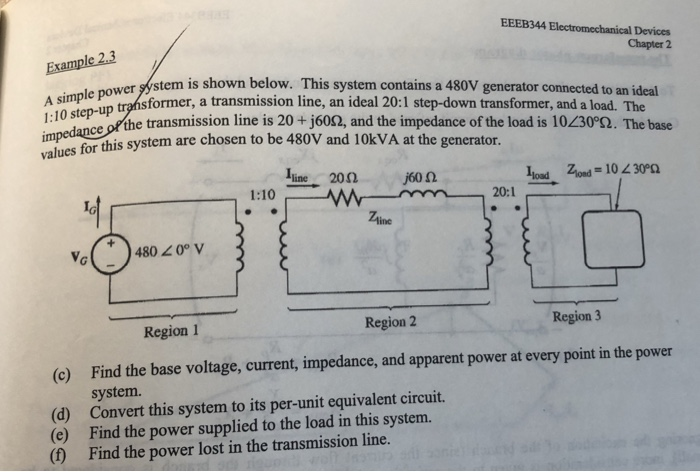

EEEB344 Electromechanical Devices Chapter 2 A simple power is impes for this system are chosen to be 480V and 10kVA at the generator. wer gystem is shown below. This system contains a 480V generator connected to an ideal sformer, a transmission line, an ideal 20:1 step-down transformer, and a load. The le po ce ofthe transmission line is 20+j6002, and the impedance of the load is 10230o2. The base İline 20Ω j60Ω 20:1 Ztine 4800°V Region 1 Region 2 Region 3 Find the base voltage, current, impedance, and apparent power at every point in the power system. (c) (d) Convert this system to its per-unit equivalent circuit. (e) Find the power supplied to the load in this system. (f) Find the power lost in the transmission line.EEEB344
