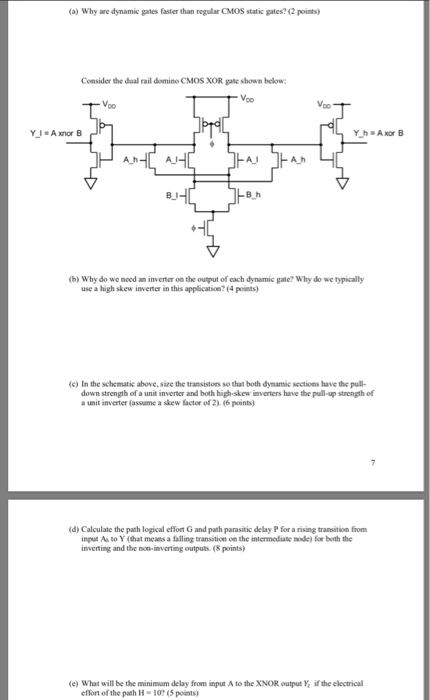

(a) Why are dynamic gates faster than regular CMOS static gates? (2 points) Consider the dual rail domino CMOS XOR gate shown below Voo A I A h (b) Why do we need an inverter on the output of each dynamic gate? Why do we typically use a high skew inventer in this application? (4 points) (c) In the schematic above, size the transistors so that both dymamic sections have the pull- down strength of a unit inverter and both high-skew inverters have the pull-up strength of a unit inverter (assume a skew factor of 2).(6 points) (d)
