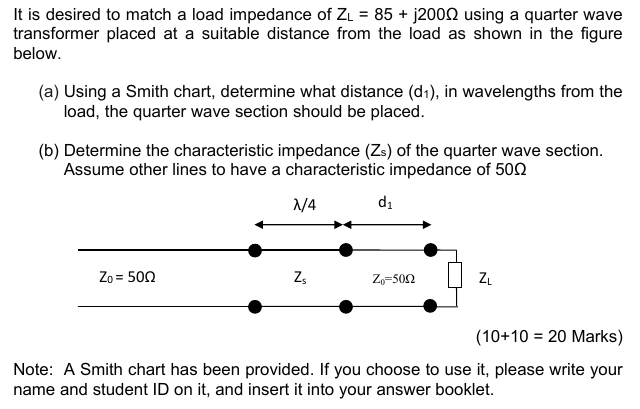

It is desired to match a load impedance of ZL-85 + j200Ω using a quarter wave transformer placed at a suitable distance from the load as shown in the figure below (a) Using a Smith chart, determine what distance (di), in wavelengths from the load, the quarter wave section should be placed. (b) Determine the characteristic impedance (Zs) of the quarter wave section. Assume other lines to have a characteristic impedance of 50Ω /4 d1 Zo 500 Zo 502 (10+10 20 Marks) Note: A Smith chart has been provided. If you choose to use it, please write your name and student ID on it, and insert it into your answer booklet.
