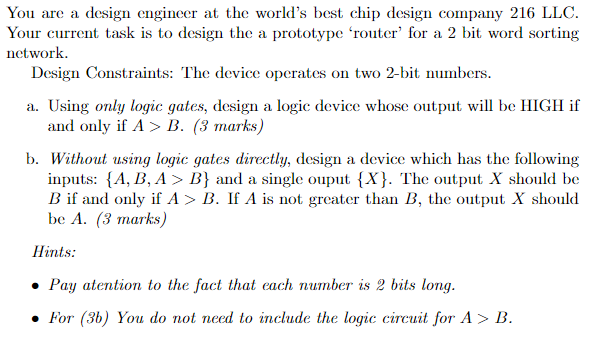

You are a design engineer at the worlds best chip design company 216 LLC. Your current task is to design the a prototype router for a 2 bit word sorting network. Design Constraints: The device operates on two 2-bit numbers. a. Using only logic gates, design a logic device whose output will be HIGH if and only if ? > B. (3 marks) b. Without using logic gates directly, design a device which has the following inputs: {A, B, A > 1) and a single ouput (X). The output X should be B if and only if A> B. If A is not greater than B, the output X should be A. (3 marks) Hints: Pay atention to the fact that each number is 2 bits long. . For (3b) You do not need to include the logic circuit for A> B.
