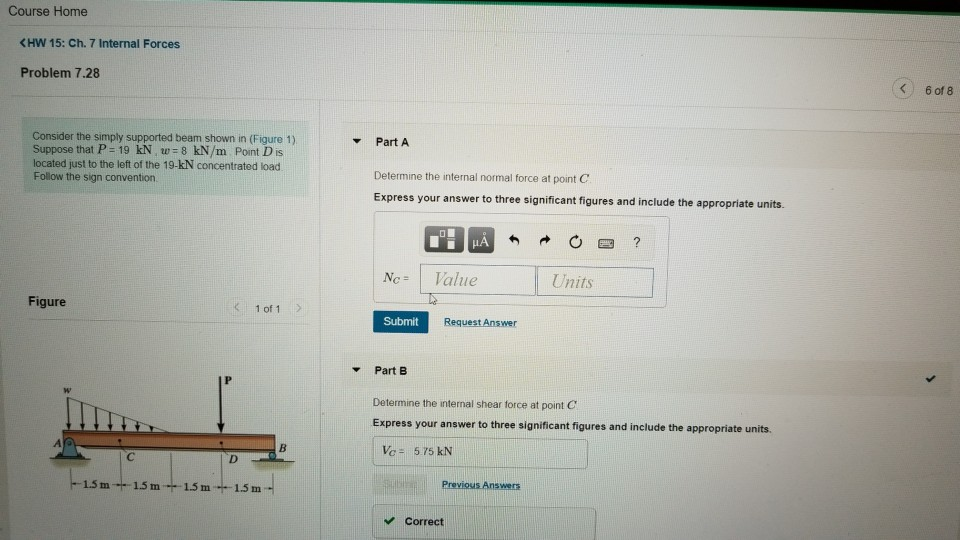

Course Home <HW 15: Ch. 7 Internal Forces < 6of8 Problem 7.28 Consider the simply supported beam shown in (Figure 1) Suppose that P-19 kN, w-8 kN/m Point D is located just to the left of the 19-kN concentrated load Follow the sign convention Part A Determine the internal normal force at point C Express your answer to three significant figures and include the appropriate units. Nc Value Units Figure : 1of1 Submit Request Answer Part B Determine the internal shear torce at point C Express your answer to three significant figures and include the appropriate units. Vc 575 kN Previosis Answers 1.5 m1.5m F-1.5 m 1.5 m Correct

media%2F06a%2F06a7b759-2f35-4e12-b002-40
