(Solved) : Consider Steam Power Cycle Operating Basis Rankine Cycle Consider Following Operational Da Q33161674 . . . .

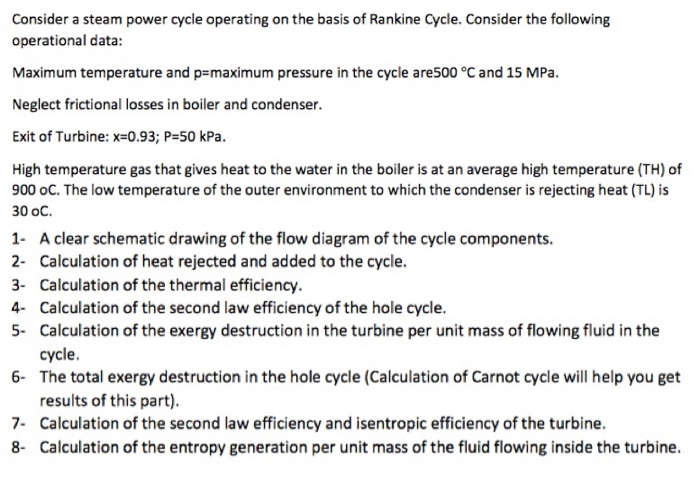

Consider a steam power cycle operating on the basis of Rankine Cycle. Consider the following operational data: Maximum temperature and p-maximum pressure in the cycle are500 °C and 15 MPa. Neglect frictional losses in boiler and condenser. Exit of Turbine: x=0.93; P=50 kPa. High temperature gas that gives heat to the water in the boiler is at an average high temperature (TH) of 900 oC. The low temperature of the outer environment to which the condenser is rejecting heat (TL) is 30 oC. 1 A clear schematic drawing of the flow diagram of the cycle components. 2- Calculation
