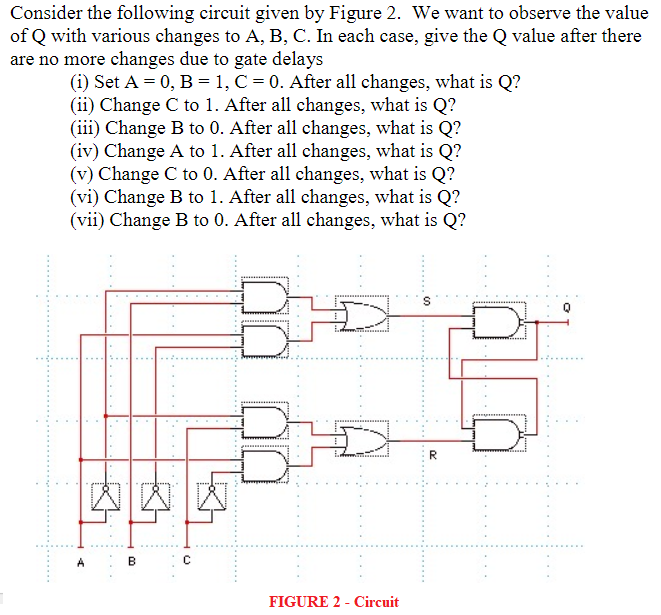

Consider the following circuit given by Figure 2. We want to observe the value of Q with various changes to A, B, C. In each

Consider the following circuit given by Figure 2. We want to observe the value of Q with various changes to A, B, C. In each case, give the Q value after there are no more changes due to gate delays (İ) Set A-0, B-1, C-0. After all changes, what s Q? (ii) Change C to 1 . After all changes, what is Q? (iii) Change B to 0. After all changes, what
