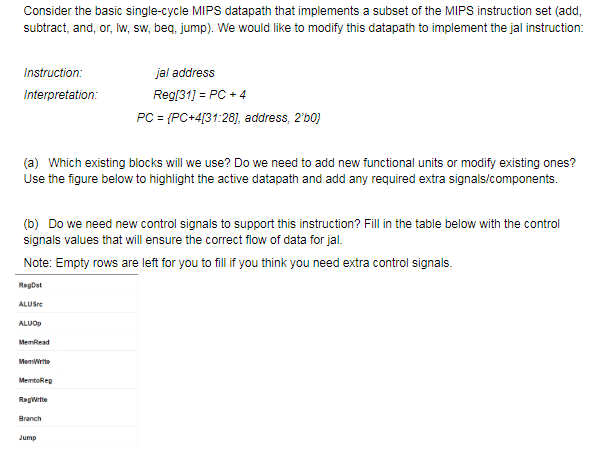

Consider the basic single-cycle MIPS datapath that implements a subset of the MIPS instruction set (add subtract, and, or, lwro r1 I2 13 r4 r5 r6 r8 12 r31 0 -3 -4 10 6 8 16

Consider the basic single-cycle MIPS datapath that implements a subset of the MIPS instruction set (add subtract, and, or, lw, sw, beq, jump). We would like to modify this datapath to implement the jal instruction: Instruction jai address Reg[31 PC +4 Interpretation PC (PC+4131.28] address, 2’b0) (a) Which existing blocks will we use? Do we need to
