COMPUTER ARCHITECTURE: ROM DESIGN LAB

Can you provide a working VHDL code for the design please. Thankyou

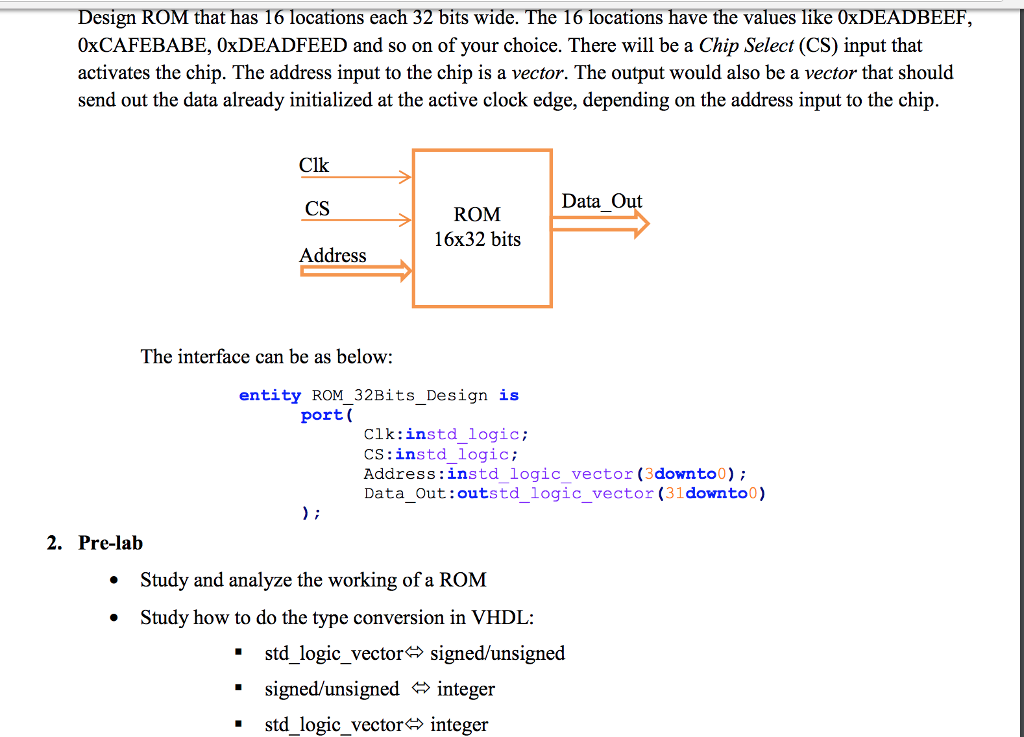

Design ROM that has 16 locations each 32 bits wide. The 16 locations have the values like 0xDEADBE 0xCAFEBABE, 0xDEADFEED and so on of your choice. There will be a Chip Select (CS) input that activates the chip. The address input to the chip is a vector. The output would also be a vector that shoultd send out the data already initialized at the active clock edge, depending on the address input to the chip Clk CS Address Data Out ROM 16x32 bits The interface can be as below: entity ROM 32Bits Design is port( Clk:instd_logic CS:instd_logic Address:instdlogic_vector (3downto0); Data_Out:outstd_logic_vector (31downto0) 2. Pre-lab Study and analyze the working of a ROM Study how to do the type conversion in VHDL: * * std logic vector# signed/unsigned *signed/unsigned integer . std_logic vector?integer
