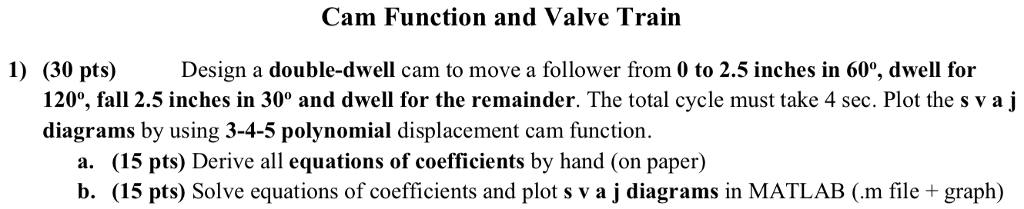

Cam Function and Valve Train 1) Design a double-dwell cam to move a follower from 0 to 2.5 inches in 60% dwell for (30 pts) 120% fall 2.5 inches in 30° and dwell for the remainder. The total cycle must take 4 sec. Plot the s v a j diagrams by using 3-4-5 polynomial displacement cam function. a. (15 pts) Derive all equations of coefficients lb b. (15 pts) Solve equations of coefficients and plot s v a j diagrams in MATLAB (.m file + graph) y hand (on paper)Design of Machinery course

Cam Function and Valve
