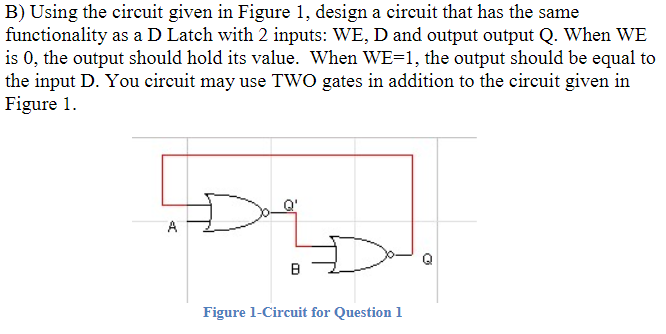

B) Using the circuit given in Figure 1, design a circuit that has the same functionality as a D Latch with 2 inputs: WE, D and output output Q. When WE is 0, the output should hold its value. When WE=1, the output should be equal to the input D. You circuit may use TWO gates in addition to the circuit given in Figure 1 Q’ Figure 1-Circuit for Question 1
