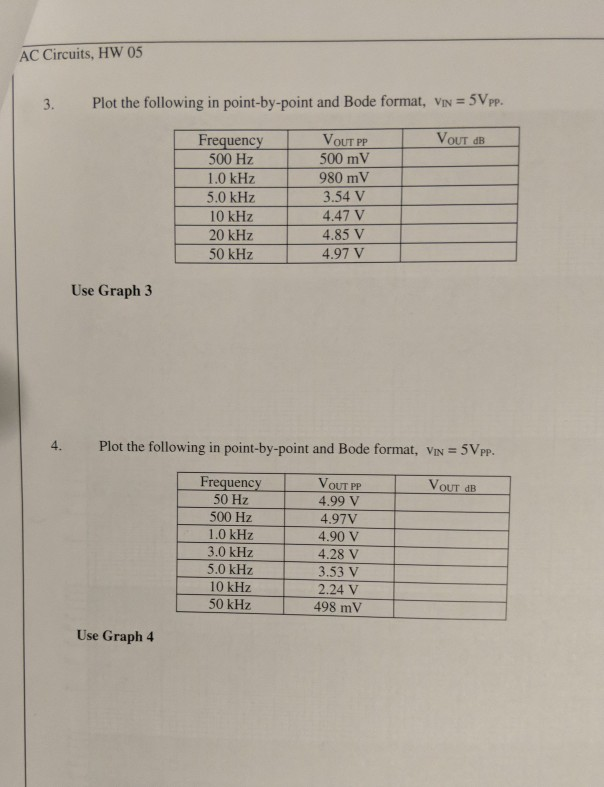

AC Circuits, HW 05 3. Plot the following in point-by-point and Bode format, VIN 5VPP. Frequency 500 Hz 1.0 kHz 5.0 kHz 10 kHz 20 kHz 50 kHz VouT OUT PP 500 mV 980 mV 3.54 V 4.47 V 4.85 V 4.97 V Use Graph 3 4. Plot the following in point-by-point and Bode format, VIN 5VPP. FrequencyVOUT PP 4.99 V 4.97V 4.90 V 4.28 V 3.53 V 2.24 V 498 mV Vour dB 50 Hz 500 Hz 1.0 kHz 3.0 kHz 5.0 kHz 10 kHz 50 kHz Use Graph 4
