(Solved) : 924 Using Component Values Appendix H Find Single Capacitor Network Capacitors Combined Pa Q32768984 . . . .

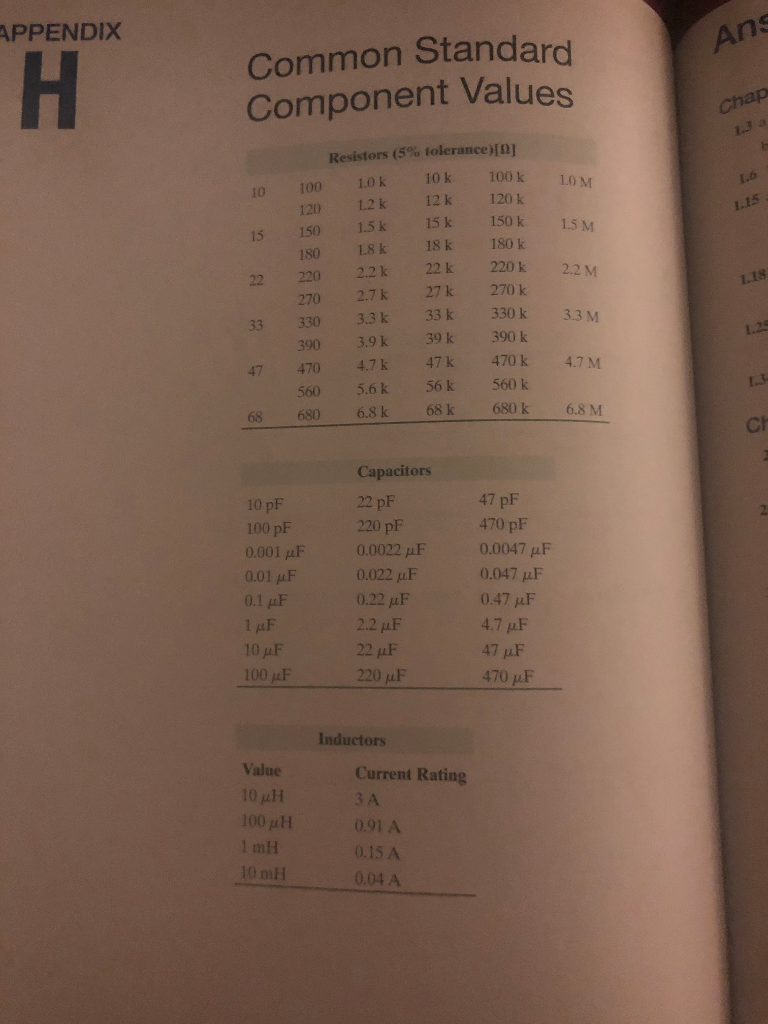

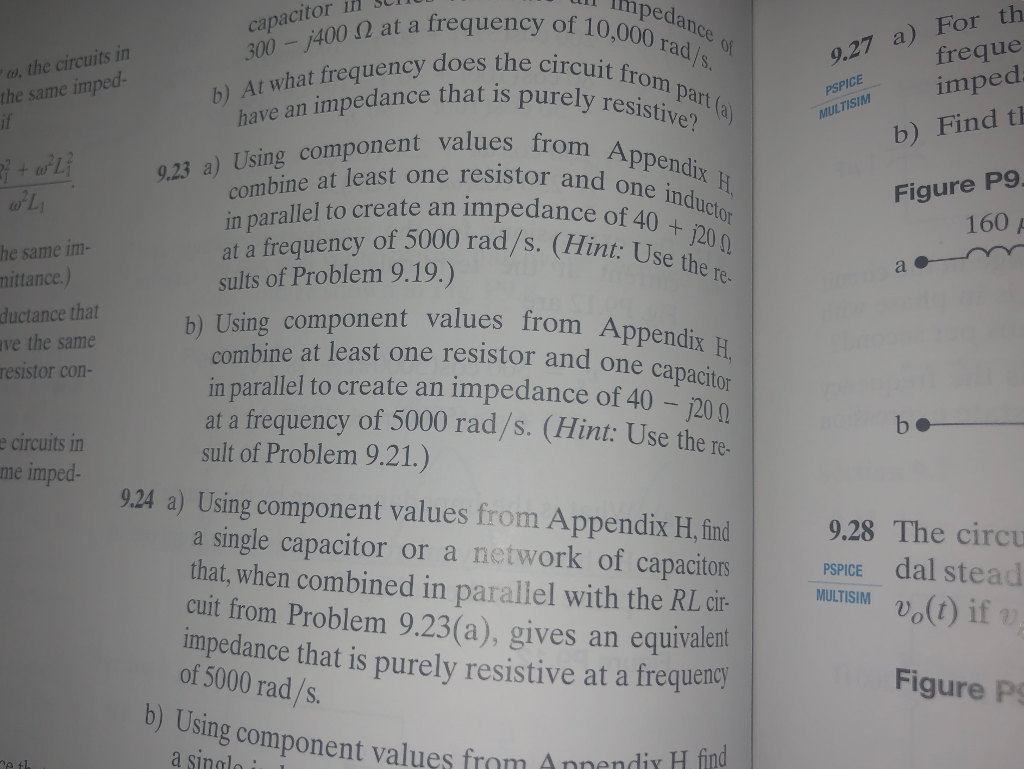

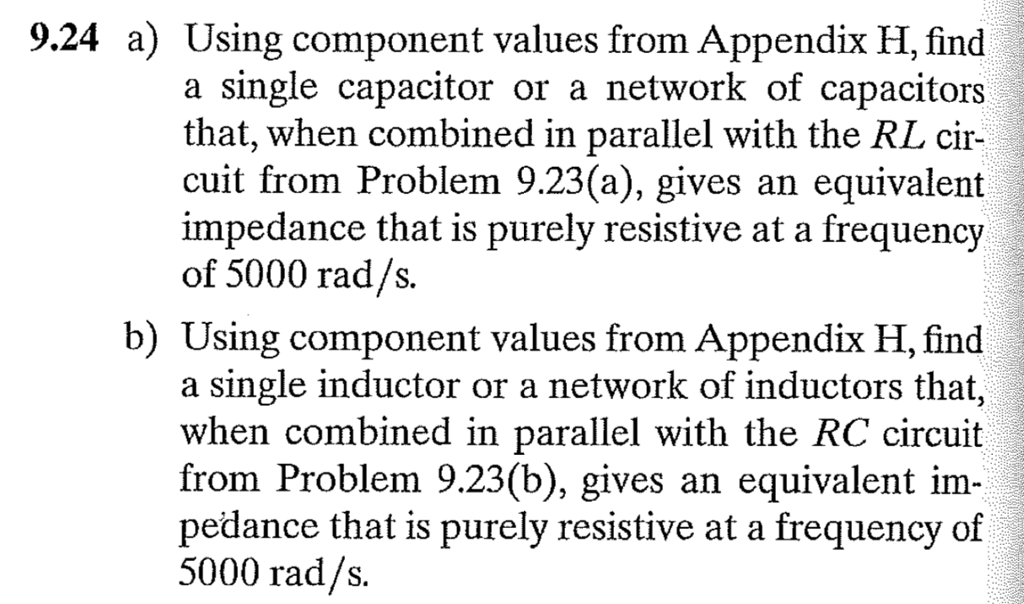

9.24 a) Using component values from Appendix H, find a single capacitor or a network of capacitors that, when combined in parallel with the RL cir- cuit from Problem 9.23(a), gives an equivalent impedance that is purely resistive at a frequency of 5000 rad/s. b) Using component values from Appendix H, find a single inductor or a network of inductors that, when combined in parallel with the RC circuit from Problem 9.23(b), gives an equivalent im pedance that is purely resistive at a frequency of 5000 rad/s.

9.24 a) Using component
