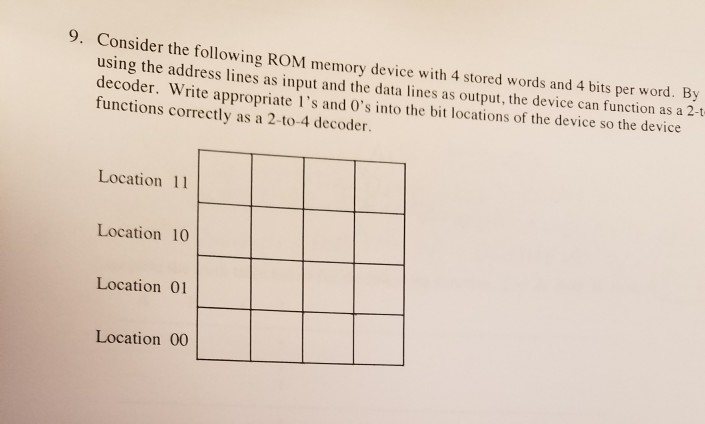

9. Consider the following ROM memory device with 4 stored words and 4 bits per word. By using the address lines as input and the data lines as output, the device can function as a 2-t decoder. Write appropriate Is and Os into the bit locations of the device so the device functions correctly as a 2-to-4 decoder Location 11 Location 10 Location 01 Location 00

9. Consider the following ROM memory device with 4 stored words and 4 bits per word. By using the address lines as input and the data lines as output, the
