(Solved) : 88 Redesign Arbitrary Counter Section 853 Using Mod 5 Counter Special Output Decoding Logi Q27740530 . . . .

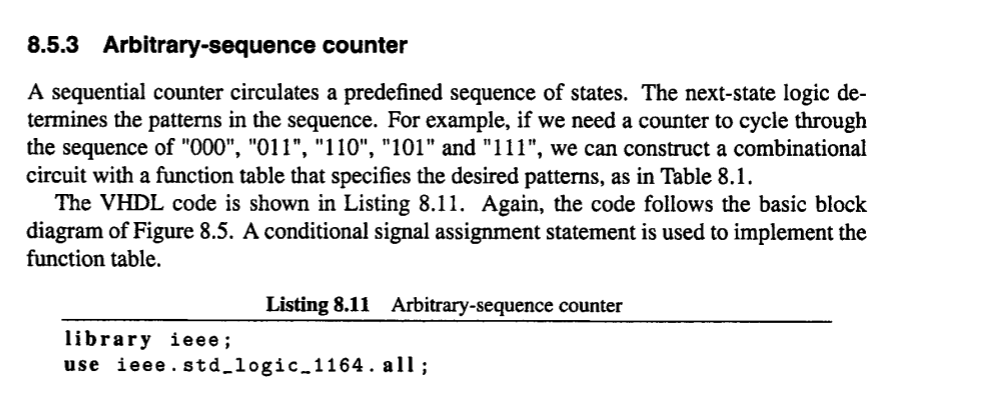

8.5.3 Arbitrary-sequence counter A sequential counter circulates a predefined sequence of states. The next-state logic de termines the patterns in the sequence. For example, if we need a counter to cycle through the sequence of 000, 011, 110, 101 and 111, we can construct a combinational circuit with a function table that specifies the desired patterns, as in Table 8.1. The VHDL code is shown in Listing 8.11. Again, the code follows the basic block diagram of Figure 8.5. A conditional signal assignment statement is used to implement the function table. Listing 8.11 Arbitrary-sequence counter library ieee; use ieee. std_logic.1164. all;

8.8
