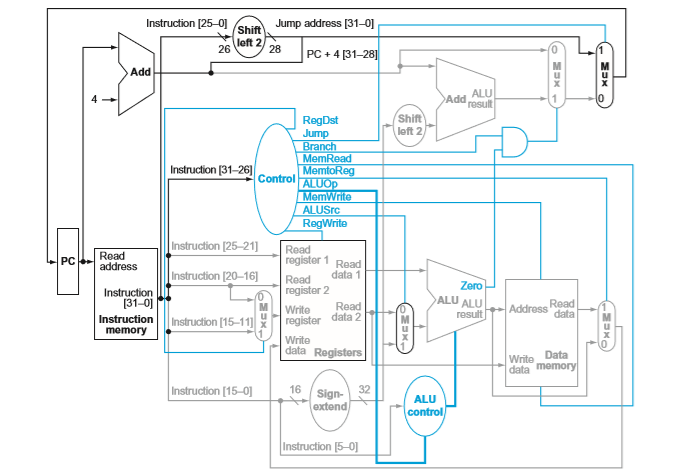

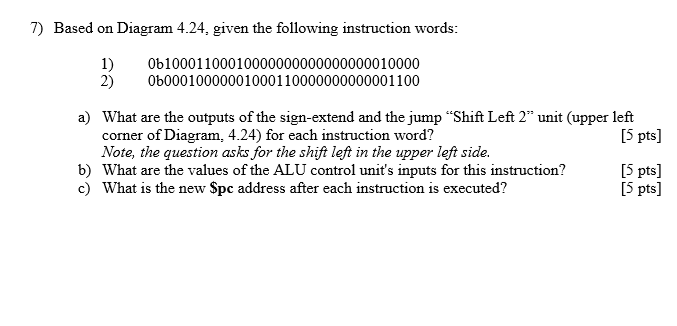

7) Based on Diagram 4.24, given the following instruction words: 1)0b10001100010000000000000000010000 2) 0b00010000001000110000000000001100 ) What are the outputs of the sign-extend and the jump “Shift Left2” unit (upper left [5 pts] corner of Diagram, 4.24) for each instruction word? Note, the question asks for the shift left in the upper left side. b) What are the values of the ALU
