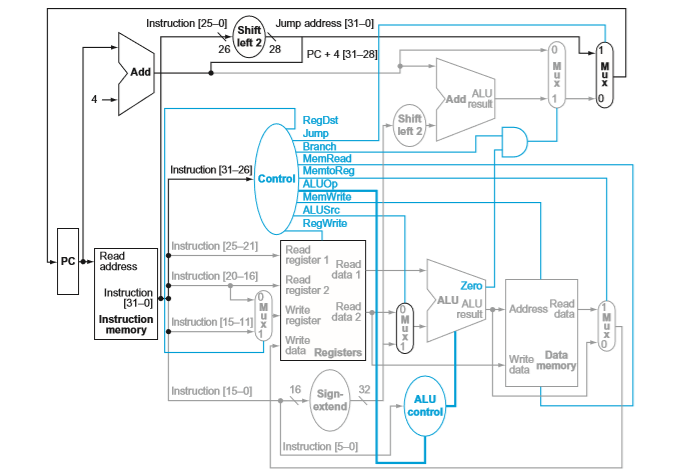

6) We examine the operation of the single-cycle datapath for specific instructions. Based on Diagram 4.24, given the followinInstruction [25-0 Jump address [31-0] Shift left 2 26 28 PC+43 Add Shift left 2 RegDst MemRead Instruction 131-26 Control emW

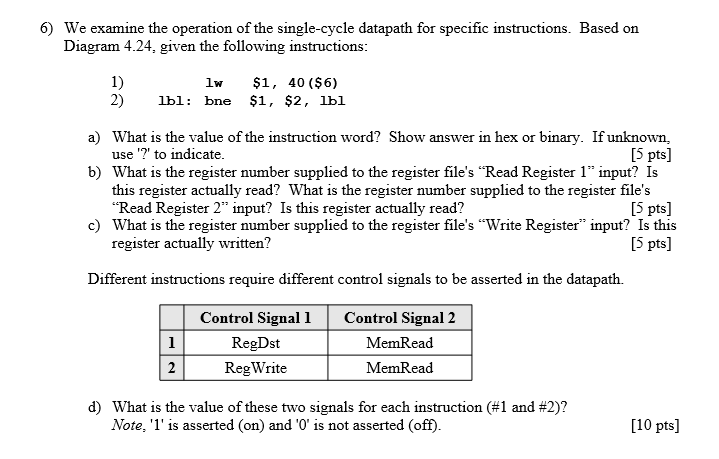

6) We examine the operation of the single-cycle datapath for specific instructions. Based on Diagram 4.24, given the following instructions 1) 2) lbl: bne $1, $2, lbl lw $1, 40 ($6) a) What is the value of the instruction word? Show answer in hex or binary. If unknown, use ‘?’ to indicate [5 pts]
