(Solved) : 5 Use Root Locus Analyze System Right Use Matlab Answer Questions Marks 10 S 8 S S 4 See W Q32967208 . . . .

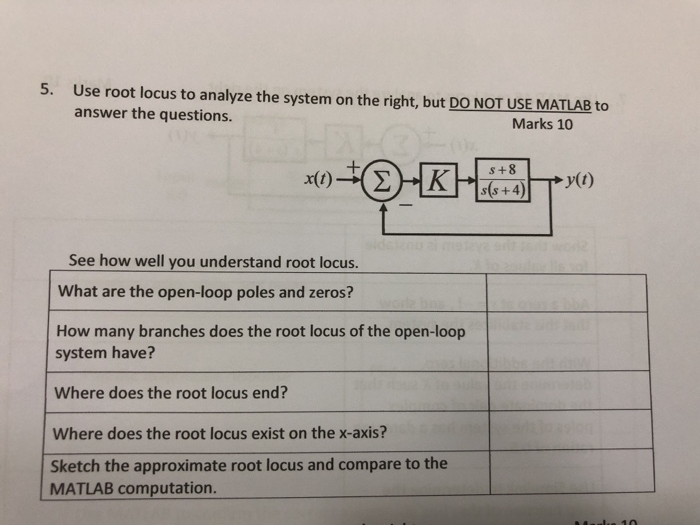

5. Use root locus to analyze the system on the right, but DO NOT USE MATLAB to answer the questions. Marks 10 s +8 s(s +4 See how well you understand root locus. What are the open-loop poles and zeros? How many branches does the root locus of the open-loop system have? Where does the root locus end? Where does the root locus exist on the x-axis? Sketch the approximate root locus and compare to the MATLAB computation.5. Use root locus to analyze the system on the right, but DO NOT USE MATLAB to answer the questions.
