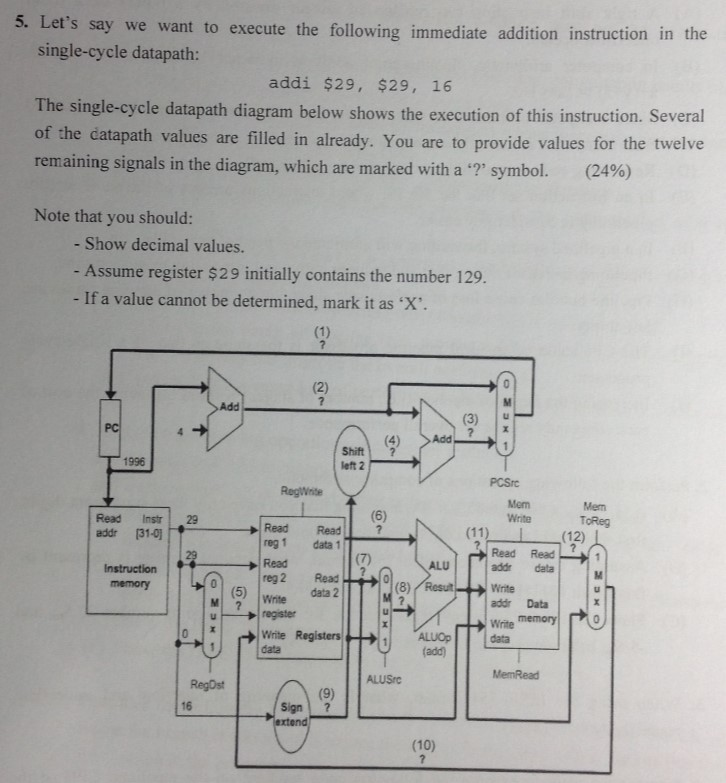

5. Lets say we want to execute the following immediate addition instruction in the single-cycle datapath: addi $29, $29, 16 The single-cycle datapath diagram below shows the execution of this instruction. Several of the datapath values are filled in already. You are to provide values for the twelve remaining signals in the diagram, which are marked with a symbol. (24%) Note that you should: - Show decimal values. - Assume register $29 initially contains the number 129. If a value cannot be determined, mark it as ‘X. MI Add (4) >Add→1 Shift? T1996 PCSrc Mem ToReg Mem Read Insr 29 →| Read Read!? (12) reg 1 data 1 reg 2 Read data 2 Read Read 29 ALU addr data 琳Data Write memory instruction .+ Read M| |Write uregister Write Registers data 1 ALUOp (add) ALUSre 16 sign (10)
