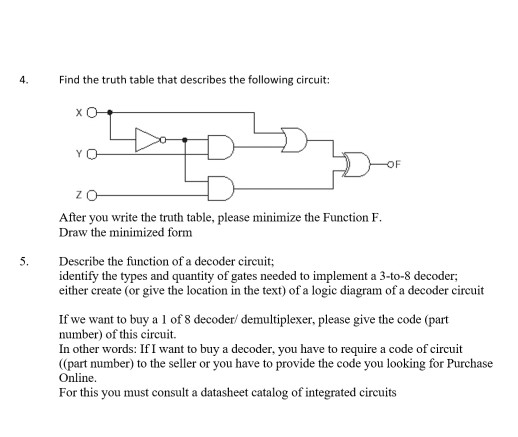

4. Find the truth table that describes the following circuit: After you write the truth table, please minimize the Function F. Draw the minimized form 5. Describe the function of a decoder circuit identify the types and quantity of gates needed to implement a 3-to-8 decoder; either create (or give the location in the text) of a logic diagram of a decoder circuit If we want to buy a 1 of 8 decoder demultiplexer, please give the code (part number) of this circuit. In other words: If I want to buy a decoder, you have to require a code of circuit (part number) to the seller or you have to provide the code you looking for Purchase Online. For this you must consult a datasheet catalog of integrated circuits
