Perform following exercise using ‘Cisco PacketTracer’:

4. Create a network based on L2 switches as shown in Figure 4. Ensure that all devices in same VLAN can ping each other. Note

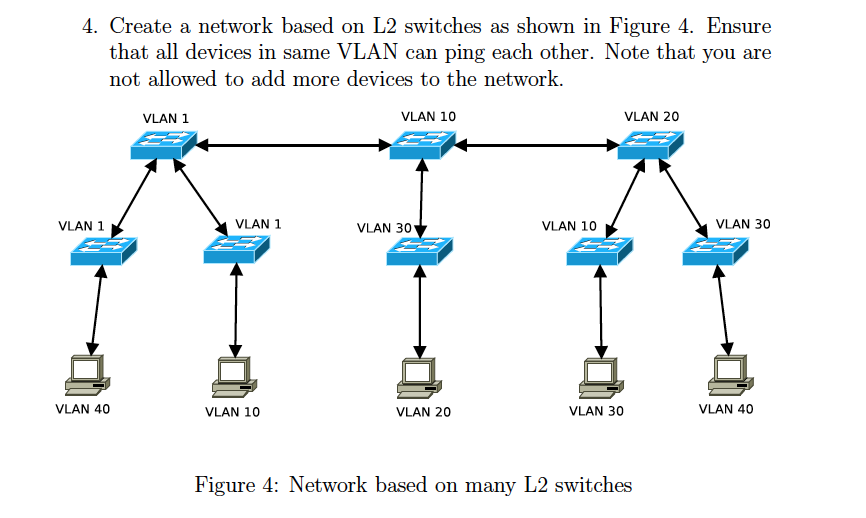

4. Create a network based on L2 switches as shown in Figure 4. Ensure that all devices in same VLAN can ping each other. Note that you are not allowed to add more devices to the network VLAN 1 VLAN 10 VLAN 20 VLAN 1 VLAN 1 VLAN 307 VLAN 10 VLAN 30 VLAN 40 VLAN 10 VLAN 20 VLAN 30 VLAN 40 Figure 4: Network based
