(Solved) : 335 Cylinder Held Two Dimensional Duct Constant Width W Height H Shown Figure P335 Result Q32456396 . . . .

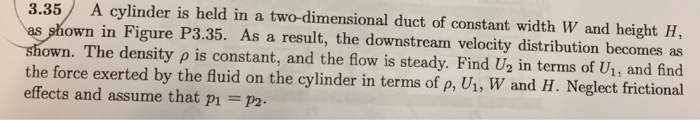

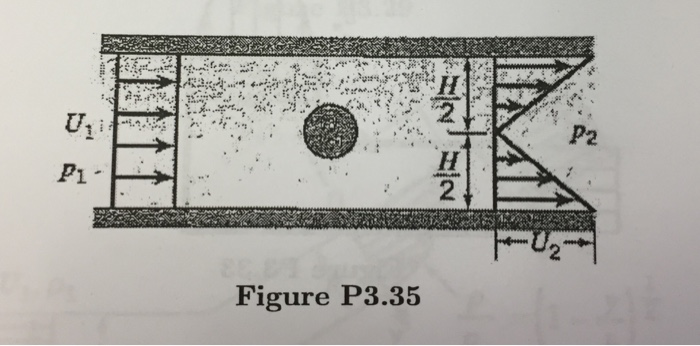

3.35) A cylinder is held in a two-dimensional duct of constant width W and height H, as shown in Figure P3.35. As a result, the downstream velocity distribution becomes as shown. The density p is constant, and the flow is steady. Find U2 in terms of U1, and find the force exerted by the fluid on the cylinder in terms of p, U1, W and H. Neglect frictional effects and assume that pi p2.media%2Fc92%2Fc920dc93-22db-4391-b6c4-8c3.35) A cylinder is held in a two-dimensional duct of constant width W and height H, as shown in Figure P3.35. As
