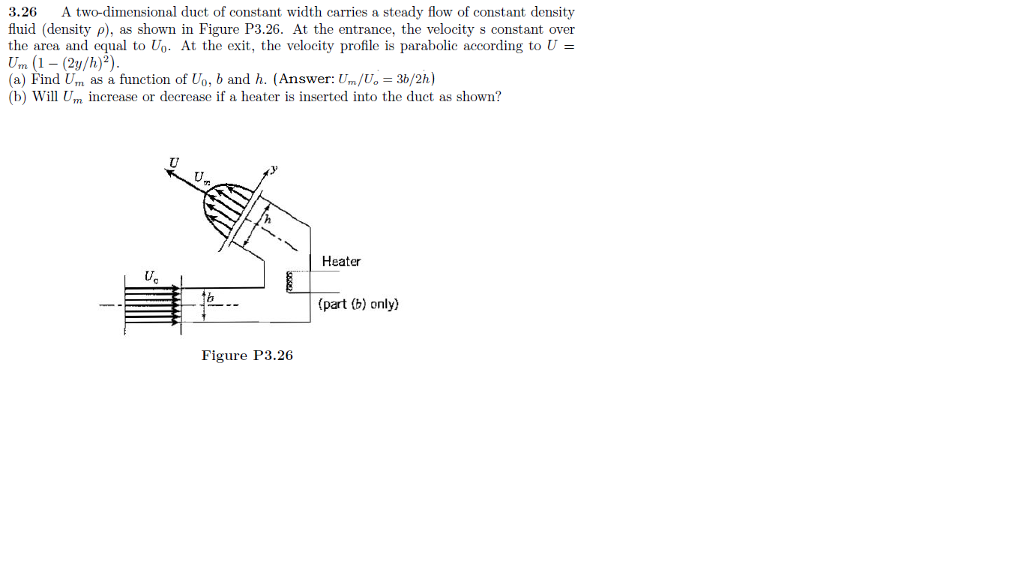

3.26 A two-dimensional duct of constant width carries a steady flow of constant density fluid (density ρ), as shown in Figure P3.26. At the entrance, the velocity s constant over the area and equal to U0. At the exit, the velocity profile is parabolic according to U = Um (1-(2y/h)2) (a) Find Urn as a function of Uo, b and h. (Answer: U./U, = 30/2h) (b) Will Um increase or decrease if a heater is inserted into the duct as shown? Heater (part (b) only) Figure P3.26

3.26 A two-dimensional duct of constant width carries a steady
