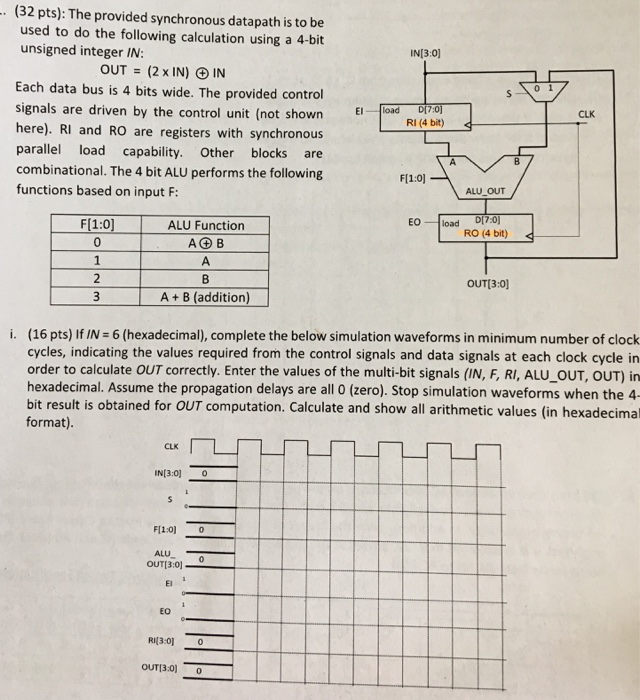

![. (32 pts): The provided synchronous datapath is to be used to do the following calculation using a 4-bit unsigned integer IN: IN[3:0] OUT (2 x IN) IN Each data bus is 4 bits wide. The provided control signals are driven by the control unit (not shown here). RI and RO are registers with synchronous parallel load capability. Other blocks are combinational. The 4 bit ALU performs the following functions based on input F: CLK RI (4 bit) ALU OUT FI1:0] ALU Function EO load DI7:0 RO (4 bit) A B OUT[3:0] A B (addition) i. (16 pts)
<div class=](https://media.cheggcdn.com/media%2F07f%2F07f2adcc-cd11-42f8-9c58-bb5640941875%2Fimage)
OR
PayPal Gateway not configured
OR
PayPal Gateway not configured
(Solved) : 32 Pts Provided Synchronous Datapath Used Following Calculation Using 4 Bit Unsigned Inte Q29512657 . . . .
