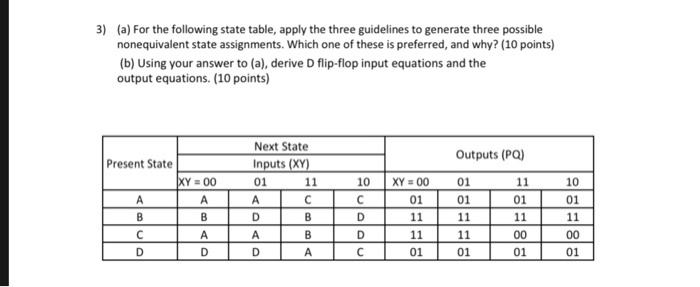

3) (a) For the following state table, apply the three guidelines to generate three possible nonequivalent state assignments. Which one of these is preferred, and why? (10 points) (b) Using your answer to (a), derive D flip-flop input equations and the output equations. (10 points) Next State Inputs (XY 01 Outputs (Pa) Present State 10 XY 00 01 01 01 01 01 01 01 01 013) (a) For the following state table, apply the three guidelines to generate three possible nonequivalent state assignments. Which one of these is preferred, and why? (10 points) (b) Using your answer
