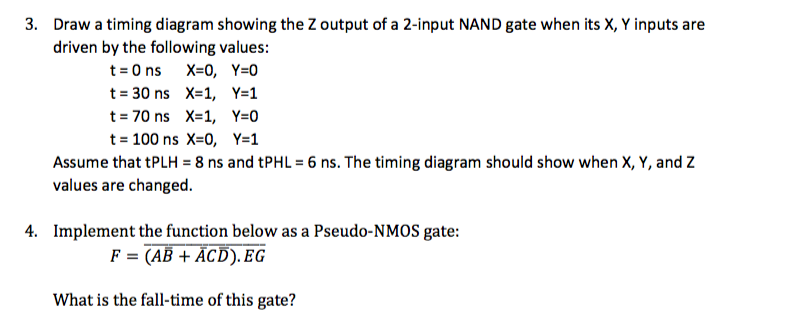

![3. Draw a timing diagram showing the Z output of a 2-input NAND gate when its X, Y inputs are driven by the following values: t= 30 ns X=1, t= 70 ns X=1, t= 100 ns X=0, Ys] Y=0 Y=1 Assume that tPLH 8 ns and tPHL 6 ns. The timing diagram should show when X, Y, and Z values are changed 4. Implement the function below as a Pseudo-NM0S gate: F = (AB + ACD). EG What is the fall-time of this gate?](http://d2vlcm61l7u1fs.cloudfront.net/media%2Fb53%2Fb53ad14d-2c23-4c73-9c5f-403acef4863d%2Fphp70Wfzt.png)
3. Draw a timing diagram showing the Z output of a 2-input NAND
OR
PayPal Gateway not configured
OR
PayPal Gateway not configured
(Solved) : 3 Draw Timing Diagram Showing Z Output 2 Input Nand Gate X Y Inputs Driven Following Value Q26621364 . . . .
