(Solved) : 3 25 Single Phase Full Wave Bridge Rectifier Uncontrolled Supplied 60 Hz 20 V Rms Ac Sourc Q32768937 . . . .

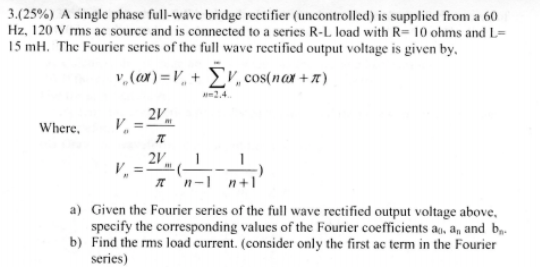

3(25%) A single phase full-wave bridge rectifier (uncontrolled) is supplied from, a 60 Hz, 20 V rms ac source and is connected to a series R-L load with R- 10 ohms and L- 15 mH. The Fourier series of the full wave rectified output voltage is given by (a)-V + V cos(na) 2.4 2V Where, 2V a) Given the Fourier series of the full wave rectified output voltage above, specify the corresponding valucs of the Fourier coefficients a, an and b) Find the rms load current. (consider only the first ac term in the Fourier series)

3(25%)
