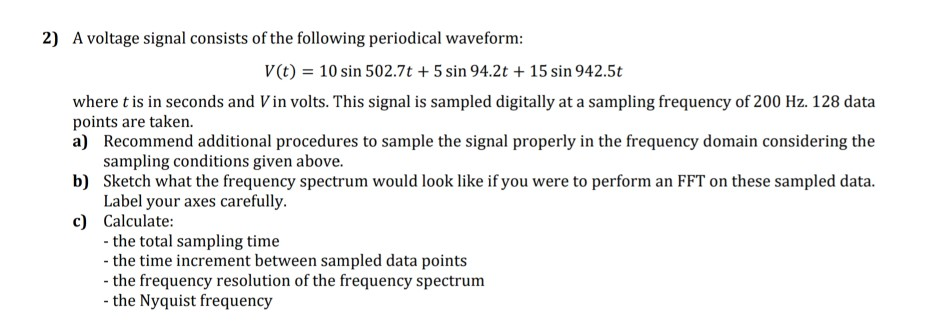

2) A voltage signal consists of the following periodical waveform: V(t) 10 sin 502.7t +5 sin 94.2t +15 sin 942.5t where t is in seconds and V in volts. This signal is sampled digitally at a sampling frequency of 200 Hz. 128 data points are taken. a) Recommend additional procedures to sample the signal properly in the frequency domain considering the sampling conditions given above. Sketch what the frequency spectrum would look like if you were to perform an FFT on these sampled data. Label your axes carefully. b) c) Calculate: the total sampling time the time increment between sampled data points the frequency resolution of the frequency spectrum the Nyquist frequency

2)
