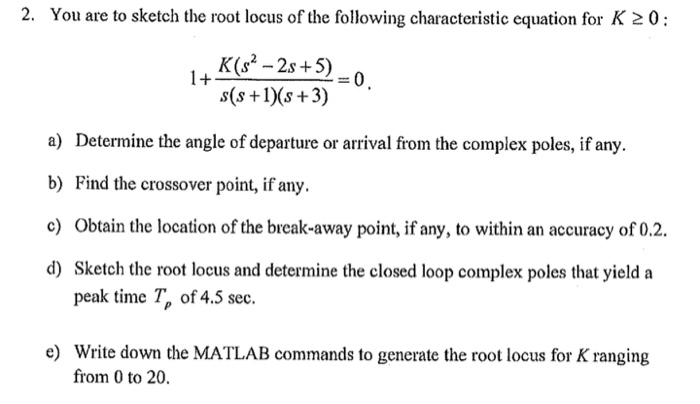

2. You are to sketch the root locus of the following characteristic equation for K 20: -2s+50 s(s +1s+3) a) Determine the angle of departure or arrival from the complex poles, if any b) Find the crossover point, if any. c) Obtain the location of the break-away point, if any, to within an accuracy of 0.2 d) Sketch the root locus and determine the closed loop complex poles that yield a peak time Tp of 4.5 sec. e) Write down the MATLAB commands to generate the root locus for K ranging from 0 to 202. You are
