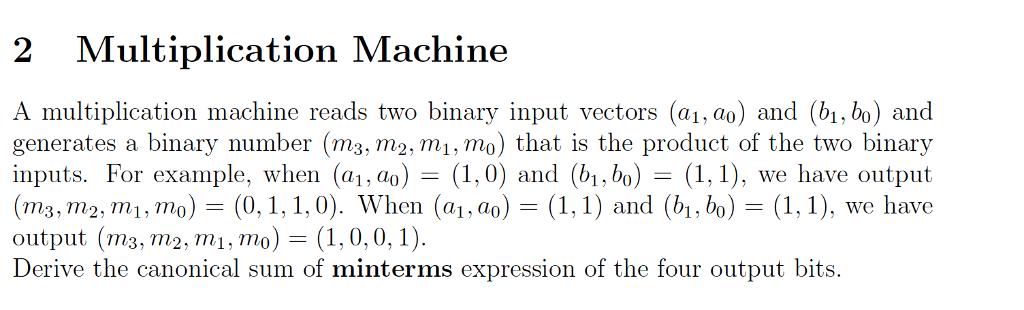

2 Multiplication Machine A multiplication machine reads two binary input vectors (a1, ao) and (bi, bo) and generates a binary number (m3, m2, mi, mo) that is the product of the two binary inputs. For example, when (al, ao) = (1,0) and (b1,bo)-(1,1), we have output (m3, m2, m1, mo (0,1,1,0). When (a1,ao) -(1,1) and (bi, bo) -(1,1), we have output (m3, m2, m1, mo) -(1, 0,0, 1). Derive the canonical sum of minterms expression of the four output bits.

2 Multiplication Machine A multiplication machine reads two binary input vectors (a1, ao) and (bi, bo) and
