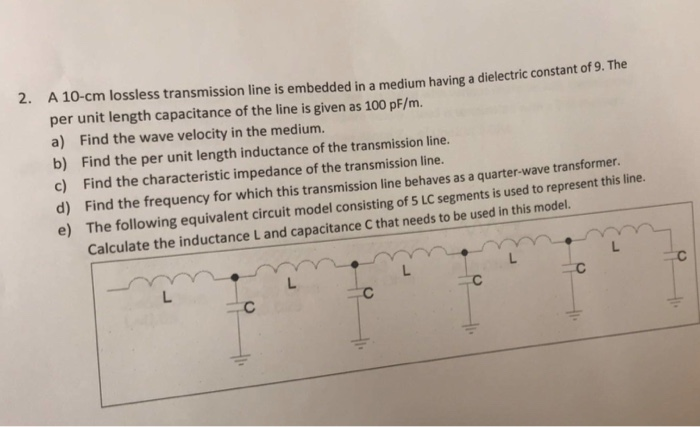

2. A 10-cm lossless transmission line is embedded in a medium having a dielectric constant of 9. The per unit length capacitance of the line is given as 100 pF/m. a) Find the wave velocity in the medium b) Find the per unit length inductance of the transmission line. c) Find the characteristic impedance of the transmission line. d) Find the frequency for which this transmission line behaves as a quarter-wave transformer e) The following equivalent circuit model consisting of 5 LC segments is used to represent this line. Calculate the inductance L and capacitance C that needs to be used in this model. L.2.
